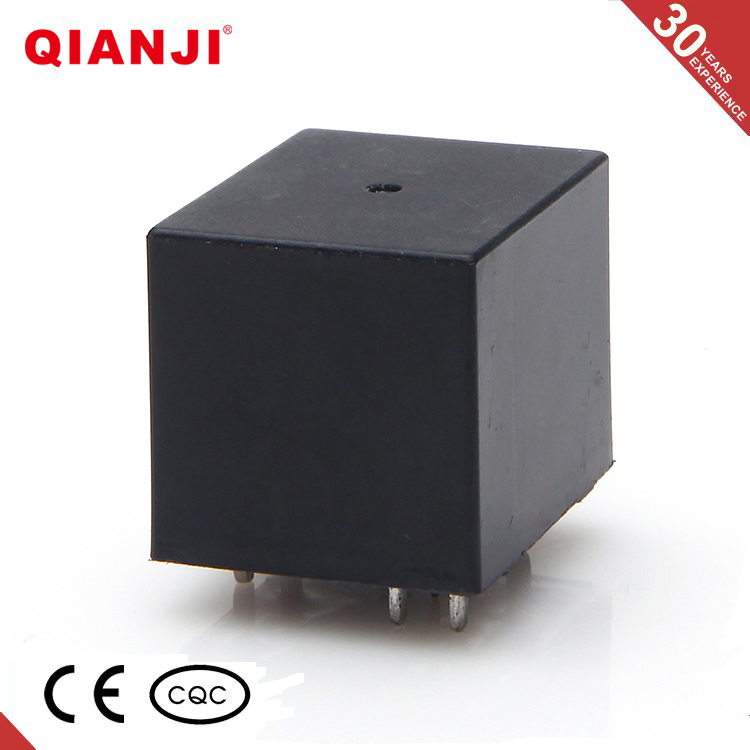

5 Pin Mini Relay 12V 20A Automotive Relay
QJ822-black
Delivery
FOB
minimum order
1 piece
Supply Ability
1000000piece / Month
Country of Origin
Ningbo/Shanghai
Quantity
5 Pin Mini Relay 12V 20A Automotive Relay
| Contact Form | 1A,1C |
| Contact Material | AgSno2 |
| Max.Operating Current | 40A |
| Max.Operating Voltage | 27VDC |
| Rated Load(Resistance Load) | 1A:40A 13.5VDC 20A 27VDC 1C:NO/NC 40A/30A 13.5VDC |
| Insulation Resistance | 100MΩ |
| Dielectric Strength(Coil and Contact) | 500VAC |
| Ambient Temperature | -40℃~+85℃ |
| Operated/Relese Time | 10ms/10ms |
| Mechanical Life | 1*10^6 |
| Electrical Life (min) | 1*10^5 |
| Terminal Type | PCB |
Coil Ratings
| Standard | Normal Voltage(VDC) | Pick-up Voltage (VDC) | Drop-out Voltage(VDC) | Coil Resistance(Ω±10%) | Parallel Resistance(Q±5%) | Equivalent Resistance(Q±10%) | Power Consumption(W) | Max.alowable overd Voltage(VDC) | |
| 20℃ | 85℃ | ||||||||
| 12 | 8.4 | 1.2 | 90 | - | - | 1.6 | 20.2 | 15.7 | |
| 12 | 8.4 | 1.2 | 80 | 680 | 79.5 | 1.8 | 20.2 | 15.7 | |
| 24 | 16.8 | 2.4 | 360 | - | - | 1.6 | 40.5 | 31.5 | |
| 24 | 16.8 | 2.4 | 320 | 2700 | 317.6 | 1.8 | 40.5 | 31.5 | |
5-pin mini relay 12V 20A automotive relay! This top-notch automotive relay is suitable for most types of vehicles, providing excellent performance, durability, and lifespan. This relay has an impressive resistance level and can easily handle high voltage and challenging environments.

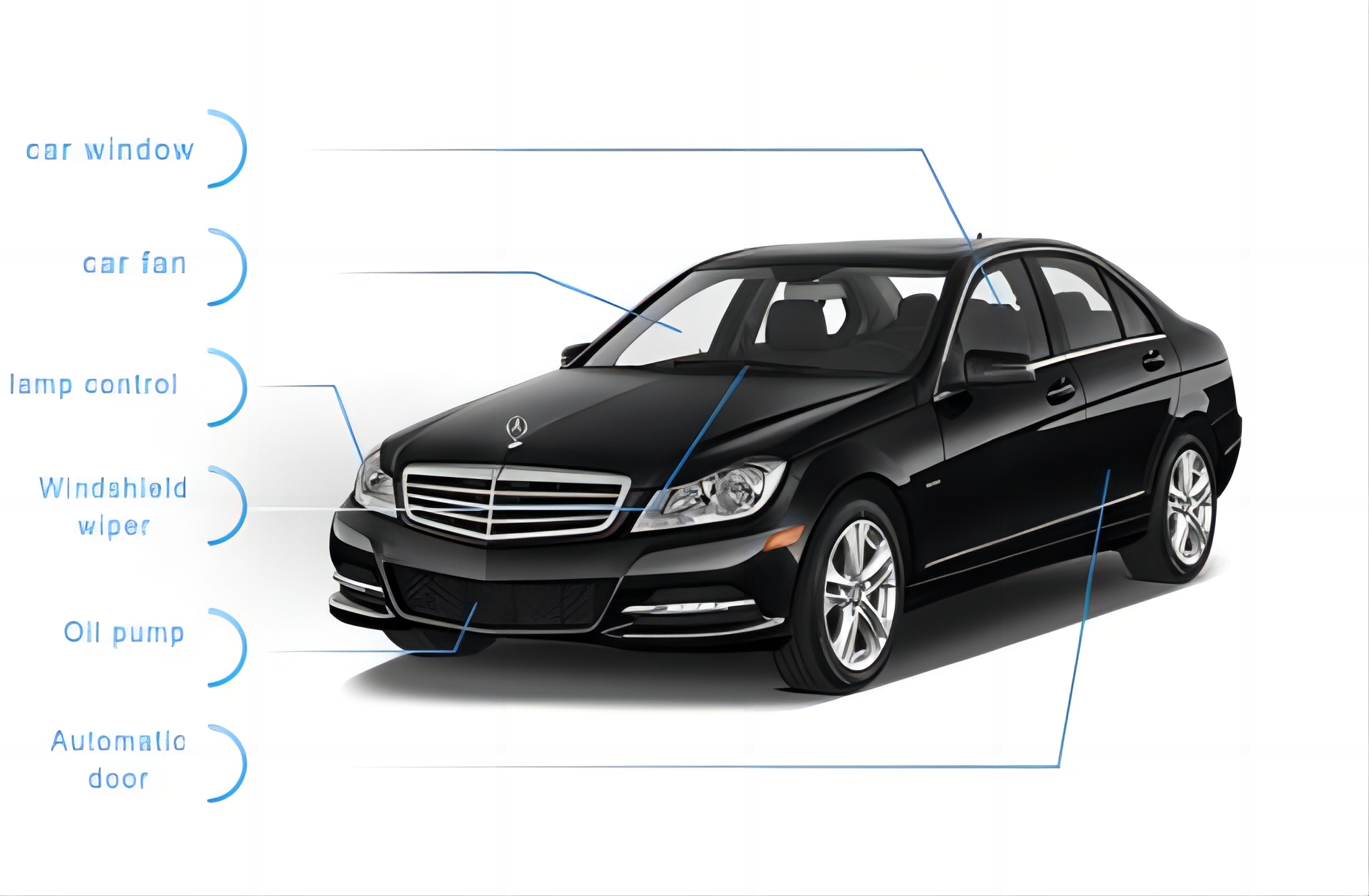

The 5-pin miniature relay has a capacity of 20A and is very suitable for supplying power to various automotive systems, from headlights to windows and air conditioning. It is also designed to be easy to install, making it easy to use and versatile.
Reliability is the key to automotive relay products, and 5-pin miniature relays meet all requirements in this regard. It is made of the highest quality materials, ensuring its wear resistance and providing long-lasting functionality.
If you are looking for an effective and durable car relay, then take a look at the 5-pin miniature relay 12V 20A. This top-level product will give you peace of mind as your vehicle has a high-performance and long-lasting relay.
