QIANJI Low Price 220 V DC Air Condition Refrigerator Power Relay G7L
- Place of Origin:CN;ZHE
- Usage:Protective
- Protect Feature:Sealed
- Size:Miniature
- Model Number:G7L-2A-BUB
- Brand Name:QIANJI
- Contact Load:High Power
- Microscope Theory:Voltage Relay
- Product name:220 V DC Air Condition Refrigerator Power Relay G7L
- Operate Time:≤30ms
- Release Time:≤30ms
- Ambient Temperature:-25~+55℃
- Humidity:38%~85%RH
- Atmospheric Pressure:86~106Pa
- Contact Form:1A,2A
- Operating Power(Resistive):8310VA;6925VA
- Contact Resistance(Initial):≤50mΩ
- Material:Agalloy
You are here:Home>>Relay>>Power Relay

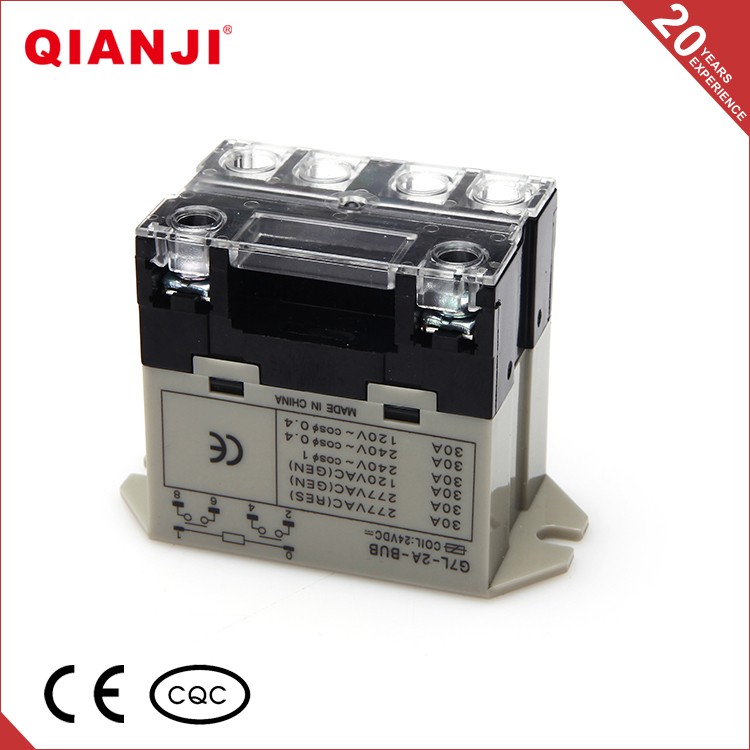

QIANJI Low Price 220 V DC Air Condition Refrigerator Power Relay G7L
Product Performance
| Contact Form | 1A | 2A | ||
| Coil power consumption | DC(W) | 1.9 | ||
| AC(VA) | 2.5 | |||
| Dielectric Strength | Between Contacts | Leakage current 1 mA | ||
| Between Contacts(differentpole) | Leakage current 1 mA | |||
| Between Contact and Coil | Leakage current 1 mA | |||
| Contact | Rated Load | Resistive | 277VAC,30A | 277VAC,25A |
| Motor | 1.5HP,120VAC 3HP,240VAC | |||
| Operating Power(Resistive) | 8310VA | 6925VA | ||
| Contact Resistance(Initial) | ≤50mΩ | |||
| Material | Agalloy | |||
| Electrical Life | ≥10^5 cycles (1800 Ops/h) | |||
| Mechanical Life | ≥5*10^5 cycles (1800 Ops/h) | |||
| Operate Voltage (at 25℃) | AC,DC:≤75% Rated Voltage | |||
| Release Voltage (at 25℃) | AC,DC:≥15% Rated Voltage | |||
| Max.Allowed Voltage (at 25℃) | 110% Rated Voltage | |||
| Insulation Resistance | ≥100mΩ (500VDC) | |||
| Operate Time | ≤30ms | |||
| Release Time | ≤30ms | |||
| Ambient Temperature | -25~+55℃ | |||
| Humidity | 38%~85%RH | |||
| Atmospheric Pressure | 86~106Pa | |||
| Shock Resistance | Half wave of pulses of sine:11ms | |||
| Vibration Resistance | 10~55HZ Dual amplitude:1.5mm | |||
| Install Model | Plug-in terminal,Bolt terminal PCB terminal .Dinrall mount | |||
| Weight | Plug-in type Approx.90g Bolt type Approx.120g | |||
| Matched Relay Socket | P76-F06 | |||
| Like Products | OMRON:G7L | |||
Coil Type (25℃)
| Rated Voltage V.DC | 6 | 12 | 24 | 48 | 100 | 110 | 220 |
| Coil Resistance Ω (±10%) | 18.9 | 75 | 303 | 1220 | 5260 | 6360 | 25474 |
| Rated Voltage V.AC | 6 | 12 | 24 | 48 | 100-120 | 200-240 | 380-400 |
| Coil Resistance Ω (±10%) | 17 | 65 | 275 | 1100 | 5200 | 21000 | 62650 |
♦We have 20 years of production experience, the best quality and the price can be assured, pls contact us freely,we will reply to you immediately
Packaging Details:Standard export packing
Delivery Detail:15-25 days
Yueqing Qianji Relay Co,.Ltd is a modern and professional enterprise reseaching,developing,
producing,and selling relays.
Over 20 years,it has always stuck to enterprise spirit pf basing on credit,factualism and innovation,
pursuing excellence,with the absolute advantage of product performance and quality,it becomes one of the great companies in the relay industry.
Company professionally produces more than 50series and more than 1000 specifications for Qianji production technology,testing equipment,scientific managment and effective,in order to provide a reliable production line.Further more,the company has obtained ISO9001 international quality system certification,the products have been approved the nontoxic and environmental protection test;some products have passed America UL certification,German TUV certification,CE certification,
CQC certification.We have the agents in Chian,and export the relays to Middle East,South America,
Southeast Asia,Taiwan,Korea,Australia,Europe and Amercia country;they are always popular with at home and aborad customers.
Face to the challenges of the technology and the market competition,we are insist on the strategy of"Technology Innovation,Quality-oriented,based on domestic market and world market development"Best quality and excellent serive.
Looking forward to cooperat with you sincerely, create a better tommorw together!

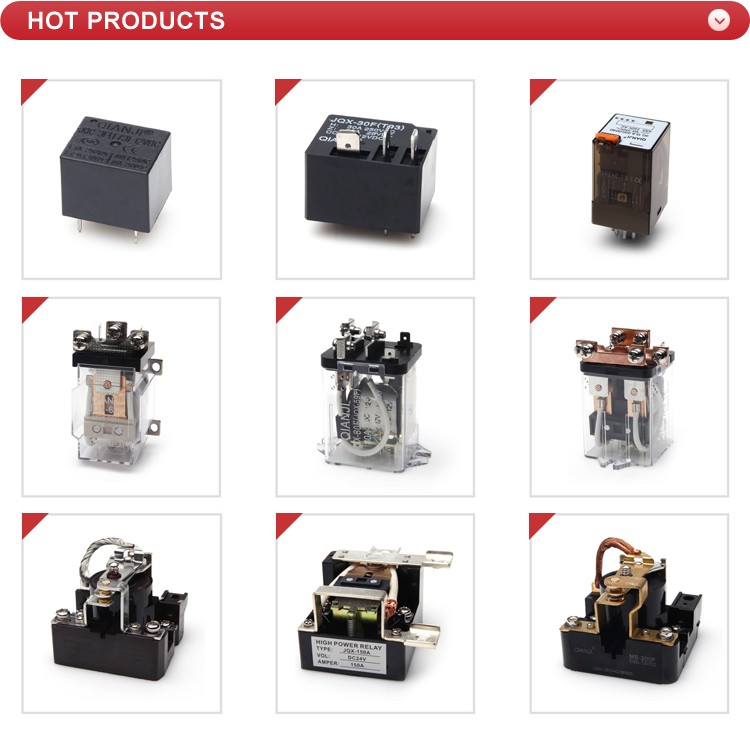

♦we have all kinds of products can be adapt any environment. you can choose which one is suitable to your products. pls tell us about your requirements,we will reply you immediately, looking forward to hearing from you.
(1)Sales Team:We have a very professional sales team.Our Sourcing solutions will help you quickly
find and buy the first-hand products that you need at the earliest time.
(2)Company Location:Near Shanghai and ningbo port,Convenience for shipping.
(3)Rapid response:Respond will be within 12 hours,Please feel free to contact us.
(4)Best Price:Factory direct sale,most competative price
♦Pls tell us your requirements,we will reply to you in professionalism, and you can tell us the used of your products , our professional staff will give you reference
Q:1.How do you control the products' quality?
A:Auto inspection machine and manual testing together before packing.
Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union
Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.
Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the express cost.
Q:5.What is your delivery time?
A:Usually it takes 15-25 working days for production.
Q:6.What is your warranty time of the products?
A:12-24 months
