24v 30 amp relay 4 pin

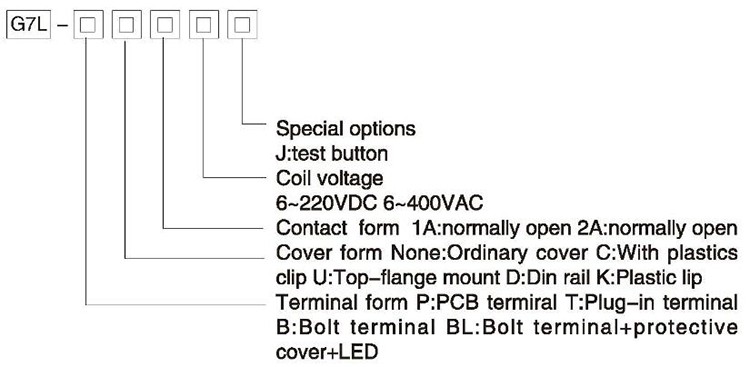

G7L
Delivery
FOB
minimum order
1 piece
Supply Ability
1000000piece / Month
Country of Origin
Ningbo/Shanghai
Quantity
30 amp relay 4 pin
| Contact Form | 1A | 2A | ||
| Coil power consumption | DC(W) | 1.9 | ||
| AC(VA) | 2.5 | |||
| Dielectric Strength | Between Contacts | Leakage current 1 mA | ||
| Between Contacts(differentpole) | Leakage current 1 mA | |||
| Between Contact and Coil | Leakage current 1 mA | |||
| Contact | Rated Load | Resistive | 277VAC,30A | 277VAC,25A |
| Motor | 1.5HP,120VAC 3HP,240VAC | |||
| Operating Power(Resistive) | 8310VA | 6925VA | ||
| Contact Resistance(Initial) | ≤50mΩ | |||
| Material | Agalloy | |||
| Electrical Life | ≥10^5 cycles (1800 Ops/h) | |||
| Mechanical Life | ≥5*10^5 cycles (1800 Ops/h) | |||
| Operate Voltage (at 25℃) | AC,DC:≤75% Rated Voltage | |||
| Release Voltage (at 25℃) | AC,DC:≥15% Rated Voltage | |||
| Max.Allowed Voltage (at 25℃) | 110% Rated Voltage | |||
| Insulation Resistance | ≥100mΩ (500VDC) | |||
| Operate Time | ≤30ms | |||
| Release Time | ≤30ms | |||
| Ambient Temperature | -25~+55℃ | |||
| Humidity | 38%~85%RH | |||
| Atmospheric Pressure | 86~106Pa | |||
| Shock Resistance | Half wave of pulses of sine:11ms | |||
| Vibration Resistance | 10~55HZ Dual amplitude:1.5mm | |||
| Install Model | Plug-in terminal,Bolt terminal PCB terminal .Dinrall mount | |||
| Weight | Plug-in type Approx.90g Bolt type Approx.120g | |||
| Matched Relay Socket | P76-F06 | |||
| Like Products | OMRON:G7L | |||
More detailed information can be downloadedorconsulted with us
24 volt relay 4 pin application
This is a 24V DC relay with a 4-pin white and brown casing. Can be used to switch between high current circuits and low current signals. It has a wide range of applications and can be adapted to various industrial environments, including home appliances and industrial equipment applications. Some customers also use it in lighting control, motor control, and other electromechanical systems.
4 prong relay quality assurance
We have our own standardized quality control system for product quality. After production is completed, we will screen and require each relay to undergo multiple rounds of 100% testing and 2 rapid inspections. It is precisely because of such strict scrutiny that our quality is guaranteed. Over the years, we have received positive feedback from many customers, praising our excellence in quality assurance
24v 4 pin relay package
Carton size: 42X29X34cm
-20 pieces/plastic box
-200 pieces/main box
The carton is internally protected by foam. There is no problem with high-quality cartons for long-distance export transportation.
-20 pieces/plastic box
-200 pieces/main box
The carton is internally protected by foam. There is no problem with high-quality cartons for long-distance export transportation.

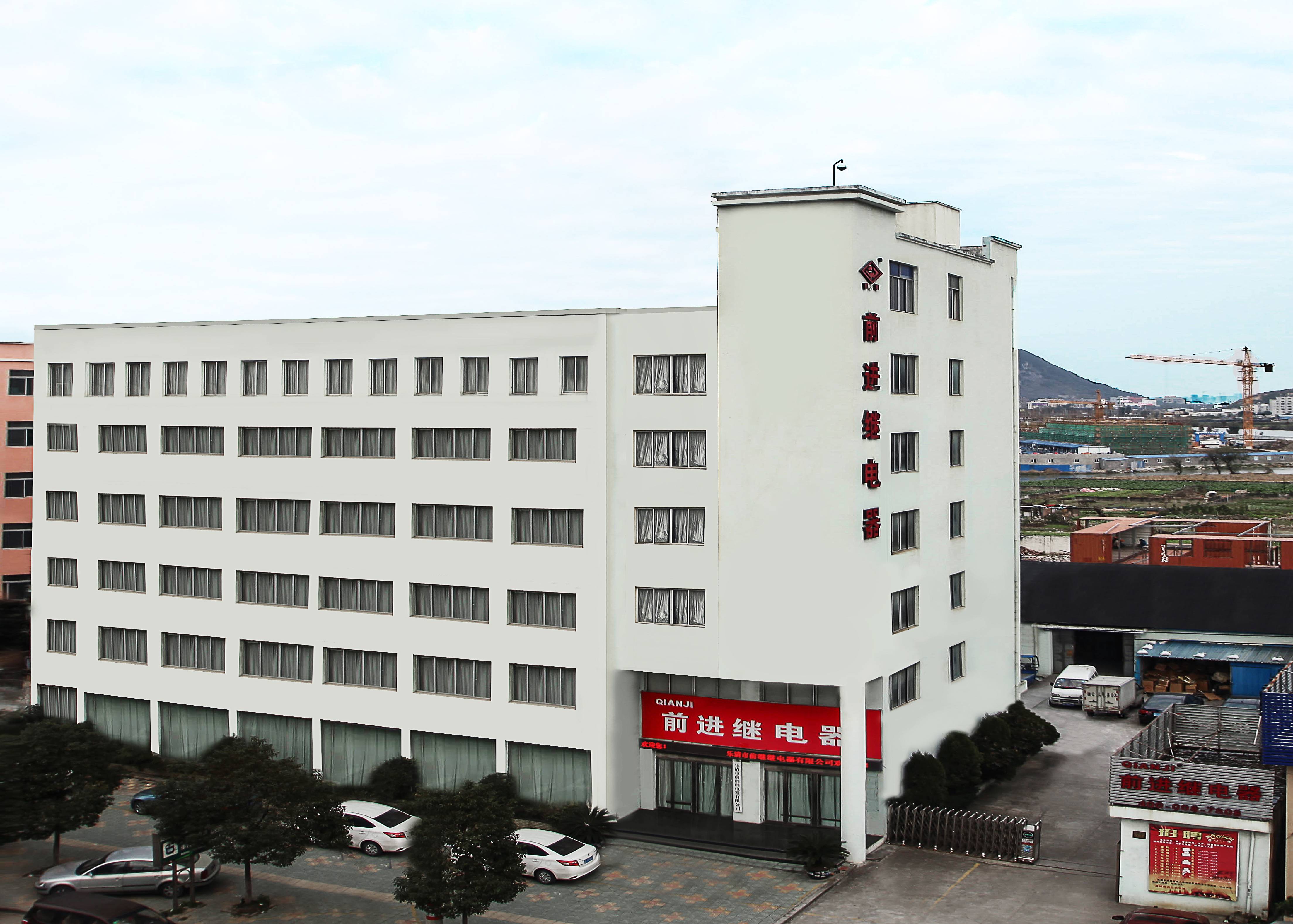

our strength
QIANJI has been specializing in the manufacturing of relays for 24 years, with its own modern factory equipped with automated production workshops
