4119 automotive relay 12v 40a
4119-Shellless
minimum order
1 piece
Supply Ability
1000000piece /
Quantity
- Voltage:12V
- Rated Current:20A
- Place of Origin:CN;ZHE
- OE NO.:4119
- Brand Name:QIANJI
- Model Number:4119
- Warranty:12
- Product Name:Flasher 4119 Automobile Relay
- Coil Power Rating:1A,1C
- Contact Resistance:100mΩ(1A 6VDC)
- Contact Material:AgCdO
- Contact Capacity:30A/40A 14VDC
- Insulation Resistance:1000MΩ.500VDC
- Operate Time:10ms/10ms
- Terminal Type:PCB
- Norminal Coil Power:1.6W,1.9W
- Product Certifications:CE
- Electric Automobile Relay
- mini relay

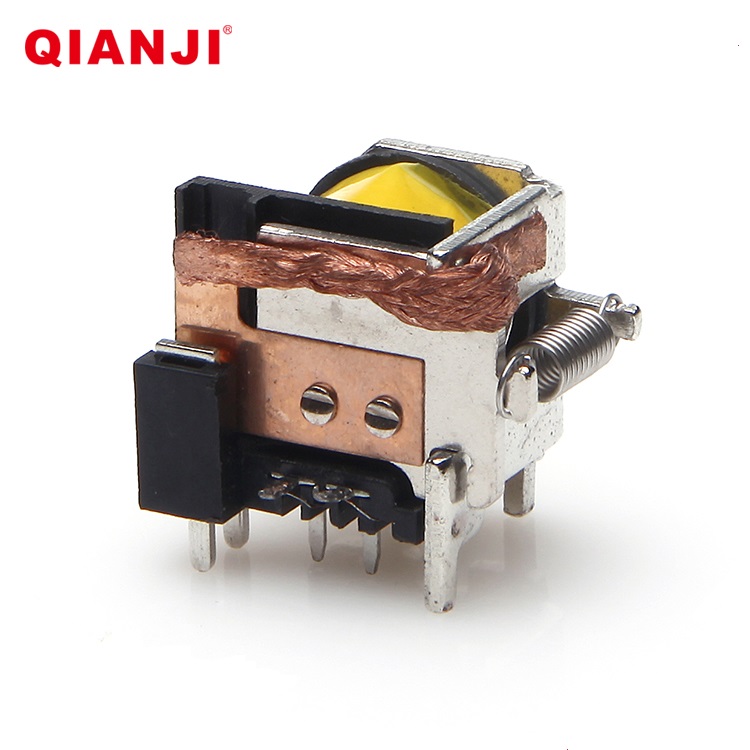

The 40A 4-pin relay 4119 is a 12V 40A single normally open plug automatic relay with a plastic bracket, available in three types: plastic sealed, sealed, and caseless. It is suitable for fog lights, headlights, battery control, and wiring harnesses, and can be used in conjunction with sockets.
International Common Name: 4119
Under normal circumstances, the automatic relay of our 40A Shell less 4119 Automotive Relay is very popular, and many customers, such as traders and South America puchasre, use cars.
Coil Versions
| Nominal Voltage VDC | Coil Resistance at 20℃±10% (Ω) | Max Operate Voltage(VDC) | Min Release Voltage (VDC) | Max Applicable Voltage (VDC) | |
| 1.6W | 1.9W | ||||
| 3 | 5.7 | 4.8 | 1.95 | 0.3 | 3.9 |
| 5 | 15.7 | 13.2 | 3.25 | 0.5 | 6.5 |
| 6 | 22.5 | 19.0 | 3.90 | 0.6 | 7.8 |
| 9 | 50.7 | 42.7 | 5.85 | 0.9 | 11.7 |
| 12 | 90.0 | 75.8 | 7.80 | 1.2 | 15.6 |
| 24 | 360.0 | 303.2 | 15.60 | 2.4 | 31.2 |

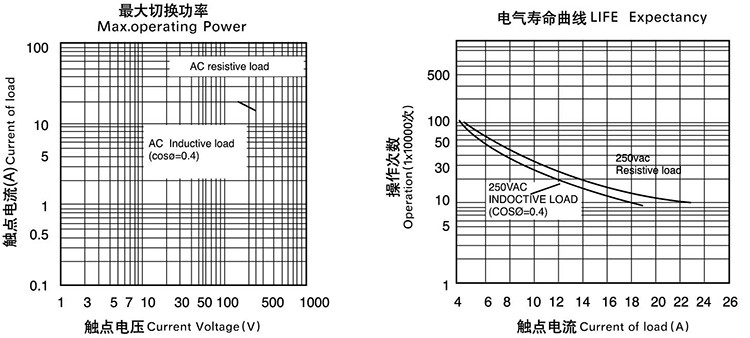

Reference Data

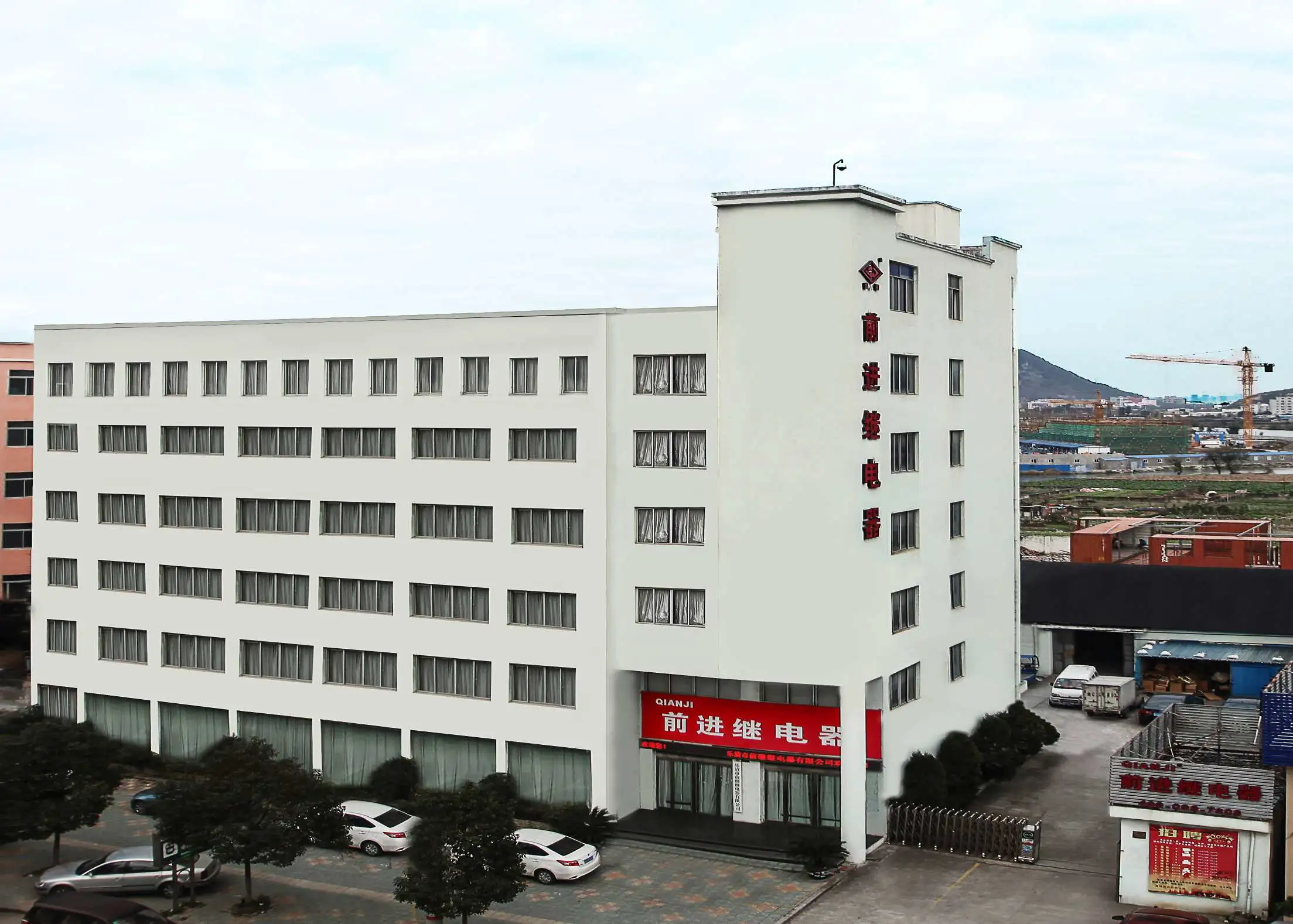

A high-quality relay manufacturer, established in 2000, we have our own buildings and factories. Customers from around the world are collaborating with us. Having rich experience in foreign trade and professional services
Our company have approved by: ISO/TS16949, ISO9001, ISO14001, OHSAS18001. And we have ceteficate of UL,TUV,CQC and CE ,our all goods can meet ROHS and REACH requirements.
In order to maintain close contact with customers, we invite them to visit or participate in international trade fairs and visit them to obtain more feedback and suggestions from customers. This helps us provide better quality and better service.
FAQ
Q: How do you control the quality of the product?
A: Before packaging, the automatic inspection machine and manual inspection are carried out together.
A: Before packaging, the automatic inspection machine and manual inspection are carried out together.
Q: Can OED customization be carried out?
A: If you have enough quantity, we can do OED for you.
Q: Can I take a sample as a reference?
A: We provide free samples for testing
Q: Can I issue a refund if the product does not function properly after use?
A: If the product is damaged due to non-human factors, a refund can be accepted
Q: What is the warranty period for this product?
A: Usually 12 to 24 months
Q: What is the delivery time?
A: The sample takes 3-9 days, and the mass production time takes 7-15 working days, depending on the quantity of your order
Q: Do you have a minimum order quantity limit for transit orders?
A: Provide 1 sample and test our quality
