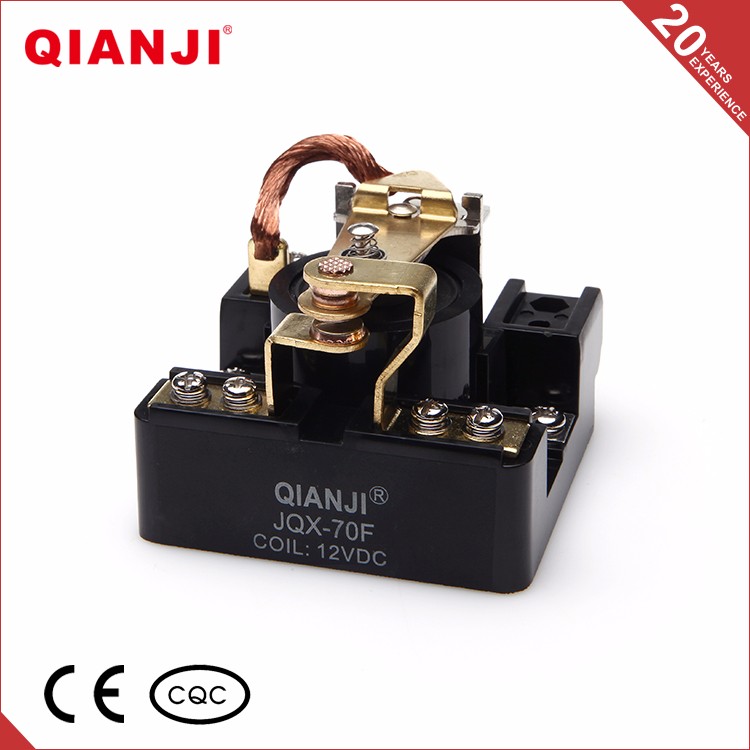

JQX-70F copper bottom plate 12V 100A automatic power relay
JQX-70F copper bottom plate 12V100A automatic power relay
| Contact Ratings | ||
| Contact Ratings | 1Z,1H,1D | |
| Contact Resistance | 100MΩ(1A 6VDC) | |
| Contact Material | AgCdO | |
| Contact Capacity | 200A 250VAC | |
| Specification | ||
| Insulation Resistance | 1000MΩ,500VDC | |
| Dieletric Strength | BCC 2500V 1 min | |
| BOC 1200V 1 min | ||
| Operate Time | 25ms/25ms | |
| Terminal Type | Terminal Mounting | |
| Coil Ratings | ||
| Norminal Coil Power | DC:2.0W AC:2.5VA | |
Our R&D team is nothing short of exceptional. With a professional development system and a strong focus on customizable services, our team is equipped to handle any challenge. Our employees are constantly undergoing training to stay up-to-date on new products and advancements in development, ensuring that we always deliver top-quality solutions. And with our team of specialized engineers providing prompt and professional technical support, our clients can always count on us to help them succeed. At our core, we are committed to delivering excellence in everything we do.
China's Top Relay Supplier - QAINJI Relay
Company professionallyproduces more than 50series and more than 1000 specifications for Qianl product such as miniature relay, high power relay, indraughirelay, auto relay, imer, solid state relay, counter, temperature controller, relay socket, switch and so on.Company insist on attracingmany high-tech talent person and strong technical force, advanced production technology, testing equipment, scientific managementand efective, in order to provide a reliable production line. Further more, the company has obtained 1S09001 international qualitysystem certifi cation,the products have been approved the nontoxic and environmental protection test; some products have passedCE certification,CQC certification.
Q1: I would like to know if you accept small orders?
A1: Don't worry. In order to obtain more orders and provide better service to customers, we accept small orders.
A2: Of course. If you don't have your own freight forwarder, we can help you.
A3: We accept OEM orders, just contact us and provide me with your design. We will provide you with a reasonable price and make samples for you as soon as possible.
