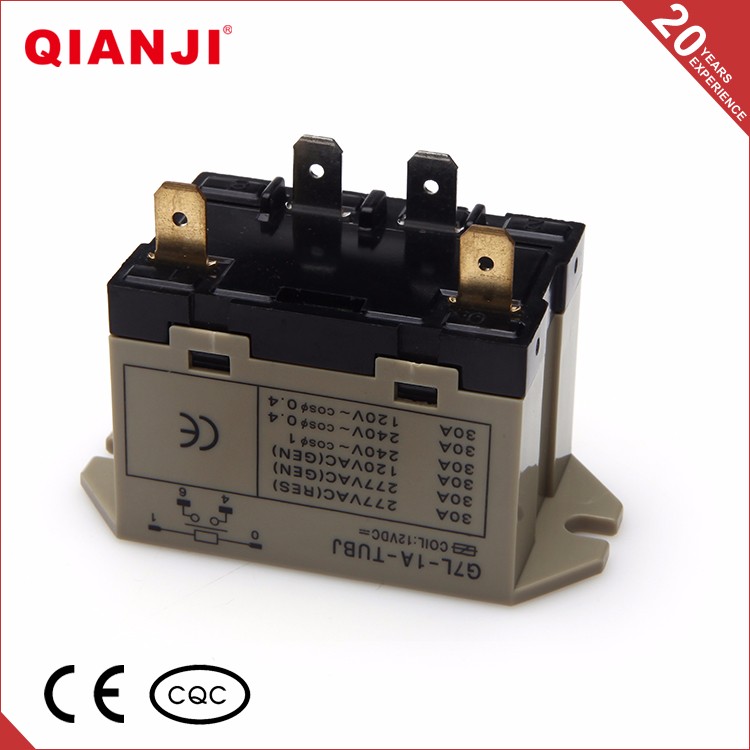

G7L 220V 20A voltage control power relay
G7L-1A-TUBJ
Delivery
FOB
minimum order
1 piece
Supply Ability
1000000piece / Month
Country of Origin
Ningbo/Shanghai
Quantity
G7L 220V 20A voltage control power relay
| Contact Form | 1A | 2A | ||
| Coil power consumption | DC(W) | 1.9 | ||
| AC(VA) | 2.5 | |||
| Dielectric Strength | Between Contacts | Leakage current 1 mA | ||
| Between Contacts(differentpole) | Leakage current 1 mA | |||
| Between Contact and Coil | Leakage current 1 mA | |||
| Contact | Rated Load | Resistive | 277VAC,30A | 277VAC,25A |
| Motor | 1.5HP,120VAC 3HP,240VAC | |||
| Operating Power(Resistive) | 8310VA | 6925VA | ||
| Contact Resistance(Initial) | ≤50mΩ | |||
| Material | Agalloy | |||
| Electrical Life | ≥10^5 cycles (1800 Ops/h) | |||
| Mechanical Life | ≥5*10^5 cycles (1800 Ops/h) | |||
| Operate Voltage (at 25℃) | AC,DC:≤75% Rated Voltage | |||
| Release Voltage (at 25℃) | AC,DC:≥15% Rated Voltage | |||
| Max.Allowed Voltage (at 25℃) | 110% Rated Voltage | |||
| Insulation Resistance | ≥100mΩ (500VDC) | |||
| Operate Time | ≤30ms | |||
| Release Time | ≤30ms | |||
| Ambient Temperature | -25~+55℃ | |||
| Humidity | 38%~85%RH | |||
| Atmospheric Pressure | 86~106Pa | |||
| Shock Resistance | Half wave of pulses of sine:11ms | |||
| Vibration Resistance | 10~55HZ Dual amplitude:1.5mm | |||
| Install Model | Plug-in terminal,Bolt terminal PCB terminal .Dinrall mount | |||
| Weight | Plug-in type Approx.90g Bolt type Approx.120g | |||
| Matched Relay Socket | P76-F06 | |||
| Like Products | OMRON:G7L | |||
About QIANJI
Founded in 2000, Meishuo is mainly engaged in the research and development, production, and sales of power relays, automotive relays, solid-state relays, and other products.
After nearly 20 years of development, it has become a leading relay company in China, with 35 fully automatic production lines and a daily output of 1.5 million yuan
The quality control process of our products involves three rigorous inspections: incoming inspection, finished product inspection, and outgoing inspection. We carry out these inspections to ensure that our products have a defect rate as low as 2.3 PPM.
Our entry inspection is the first step in ensuring that the raw materials we use are of the highest quality. Our team of quality controllers inspects the materials we receive carefully before allowing them into our production process. If we find any defects during the incoming inspection, we will immediately reject the faulty materials and inform our suppliers.
As soon as the manufacturing process is complete, we move on to the finished product inspection. Our quality control team analyzes the finished products meticulously, checking for any potential defects or discrepancies in each product. We conduct these inspections to make sure that all our products meet our standards for production quality.
The last stage of the inspection process is the outgoing inspection. Before our products are ready to be shipped out to customers, we perform a final inspection to ensure that each product matches our standards. Our production team will not release any products that do not pass the final inspection, guaranteeing that our customers receive only the highest-quality products.
We believe that consistent quality control is essential to ensuring that our products meet our customers’ demands and expectations. Our focus on quality control through the three stages of inspection guarantees that our products have a defect rate as low as 2.3 PPM. We stand behind the quality of our products and are confident that they are the best on the market.
We have a professional sales team that caters to the diverse needs of our consumers. Each member of our team specializes in different fields to ensure customer satisfaction. We understand that every individual has unique requirements, and our sales team strives to meet those demands.
Our team is always eager to help and provide assistance whenever needed. We welcome any questions or concerns that our consumers may have, and we are available 24/7 to handle inquiries via email, WhatsApp, or phone.
Our primary goal is to build strong relationships with our customers based on trust, transparency, and excellent service. We firmly believe in providing personalized solutions that are tailored to meet individual needs.
Our sales team is committed to creating a positive experience for our consumers and providing them with the best possible value. We take pride in our work, and that is reflected in the level of service we offer.
In summary, our professional sales team is dedicated to providing excellent customer service, personalized solutions, and expert knowledge. If you have any inquiries, please don’t hesitate to reach out to us via email, WhatsApp, or phone. We are always here to assist you!
Popular tags: China, manufacturer, supplier, factory, wholesale, price, purchase, customization, free samples,g7l relay,voltage control relay,dc12v relay
