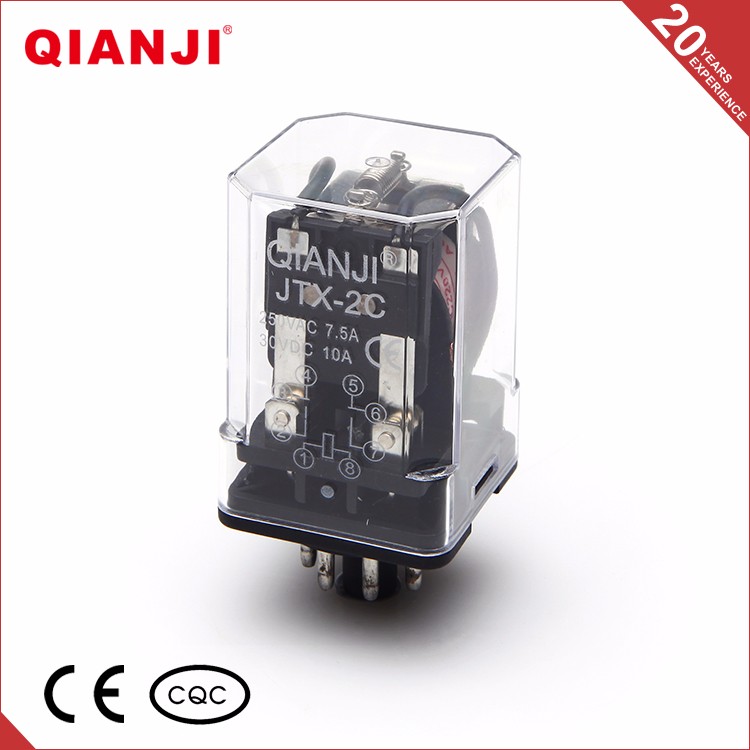

QIANJI Alibaba China JTX-2C 2Z 8 Pins 10A 24V DC General Purpose Relay
- Place of Origin:CN;ZHE
- Usage:General Purpose
- Protect Feature:Sealed
- Size:Miniature
- Model Number:JTX-2C
- Brand Name:QIANJI
- Contact Load:High Power
- Microscope Theory:Voltage Relay
- Product name:JTX-2C 2Z 8 Pins 10A 24V DC General Purpose Relay
- Contact Ratings:2Z,3Z(2C,3C);3C
- Contact Resistance:50mΩ(1A 6VDC)
- Contact Material:AgCdO
- Insulation Resistance:500MΩ,500VDC
- Operate Time:20ms/15ms
- Terminal Type:PCB Socket
- Norminal Coil Power:1.5W/2.5VA
- Product Certifications:CE
- Business Type:Manufacturer, Trading Company
You are here:Home>>Relay>>General Purpose Relay
QIANJI Alibaba China JTX-2C 2Z 8 Pins 10A 24V DC General Purpose Relay
| Contact Ratings | ||
| Contact Ratings | 2Z 3Z(2C 3C) | 3C |
| Contact Resistance | 50MΩ(1A 6VDC) | |
| Contact Material | AgCdO | |
| Contact Capacity | 5A/10A | 7A/10A |
| 28VDC/250VAC | 28VDC/250VAC | |
| Specification | ||
| Insulation Resistance | 500MΩ,500VDC | |
| Dieletric Strength | BCC 1500V 1 min | |
| BOC 1000V 1 min | ||
| Operate Time | 20ms/15ms | |
| Terminal Type | PCB Socket | |
| Coil Ratings | ||
| Norminal Coil Power | 1.5W/2.5VA | |
| Coil Versions | |||||||
Nominal Voltage VDC | Pull-in Voltage VDC | Release Voltage VDC | Coil Resistance Ω:±10% | Nominal Voltage VDC | Pull-in Voltage VDC | Release Voltage VDC | Coil Resistance Ω:±10% |
| 6 | 4.8 | 0.60 | 22.5 | 6 | 4.80 | 1.80 | 4.5 |
| 12 | 9.6 | 1.20 | 50.6 | 12 | 9.60 | 3.60 | 18 |
| 24 | 19.2 | 2.40 | 90 | 24 | 19.2 | 7.20 | 72 |
| 48 | 38.4 | 4.80 | 810 | 48 | 38.4 | 14.4 | 288 |
| 100 | 80.0 | 10.0 | 7550 | 110/120 | 88.0 | 36.0 | 1512 |
| 110 | 88.0 | 11.0 | 9000 | 220/240 | 176.0 | 72.0 | 6050/7200 |

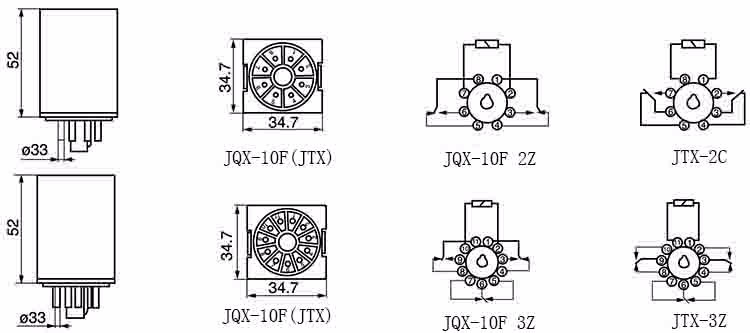

Dimension.Bottom View

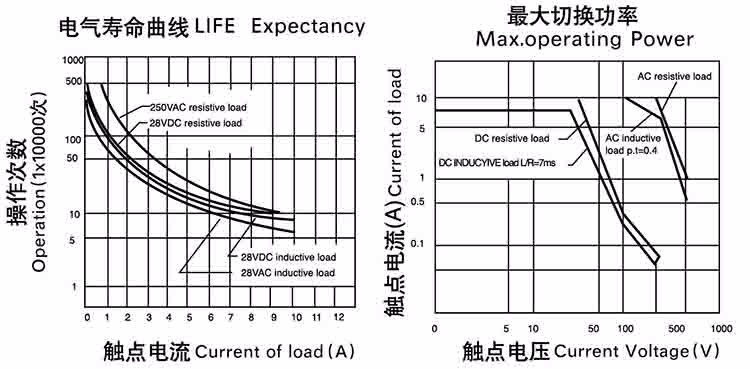

Reference Data
♦We have 20 years of production experience, the best quality and the price can be assured, pls contact us freely,we will reply to you immediately
Packaging Details:Standard export packing
Delivery Detail:15-25 days
Yueqing Qianji Relay Co,.Ltd is a modern and professional enterprise reseaching,developing,
producing,and selling relays.
Over 20 years,it has always stuck to enterprise spirit pf basing on credit,factualism and innovation,
pursuing excellence,with the absolute advantage of product performance and quality,it becomes one of the great companies in the relay industry.
Company professionally produces more than 50series and more than 1000 specifications for Qianji production technology,testing equipment,scientific managment and effective,in order to provide a reliable production line.Further more,the company has obtained ISO9001 international quality system certification,the products have been approved the nontoxic and environmental protection test;some products have passed America UL certification,German TUV certification,CE certification,
CQC certification.We have the agents in Chian,and export the relays to Middle East,South America,
Southeast Asia,Taiwan,Korea,Australia,Europe and Amercia country;they are always popular with at home and aborad customers.
Face to the challenges of the technology and the market competition,we are insist on the strategy of"Technology Innovation,Quality-oriented,based on domestic market and world market development"Best quality and excellent serive.
Looking forward to cooperat with you sincerely, create a better tommorw together!
♦we have all kinds of products can be adapt any environment. you can choose which one is suitable to your products. pls tell us about your requirements,we will reply you immediately, looking forward to hearing from you.
(1)Sales Team:We have a very professional sales team.Our Sourcing solutions will help you quickly
find and buy the first-hand products that you need at the earliest time.
(2)Company Location:Near Shanghai and ningbo port,Convenience for shipping.
(3)Rapid response:Respond will be within 12 hours,Please feel free to contact us.
(4)Best Price:Factory direct sale,most competative price
♦Pls tell us your requirements,we will reply to you in professionalism, and you can tell us the used of your products , our professional staff will give you reference
Q:1.How do you control the products' quality?
A:Auto inspection machine and manual testing together before packing.
Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union
Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.
Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the express cost.
Q:5.What is your delivery time?
A:Usually it takes 15-25 working days for production.
Q:6.What is your warranty time of the products?
A:12-24 months
