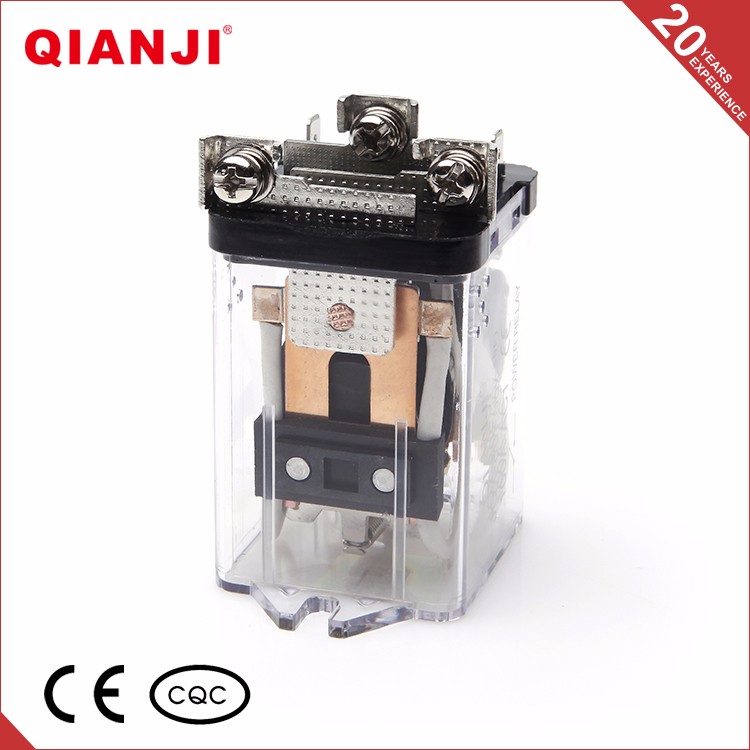

Jqx-59F 12v 80a relay high capacity relay
JQX-59F
Delivery
FOB
minimum order
500 pieces
Supply Ability
1000000pieces / Month
Country of Origin
Ningbo/Shanghai
Quantity
Products
| Contact Ratings | ||
| Contact Ratings | 1Z,1H,1D | |
| Contact Resistance | 100MΩ(1A 6VDC) | |
| Contact Material | AgCdO | |
| Contact Capacity | 80A 250VAC/30VDC | |
| Specification | ||
| Insulation Resistance | 1000MΩ,500VDC | |
| Dieletric Strength | BCC 2500V 1 min | |
| BOC 1200V 1 min | ||
| Operate Time | 25ms/25ms | |
| Terminal Type | Screw | |
| Coil Ratings | ||
| Norminal Coil Power | DC:3.6W AC:4.4VA | |
A relay is an electrical switch. It consists of a set of input terminals for single or multiple control signals and a set of operating contact terminals. A switch can have any number of various contact forms, such as closed contacts, open contacts, or their combination. Relay is used in places where independent low-power signal control circuits are required, or where multiple circuits must be controlled by one signal.

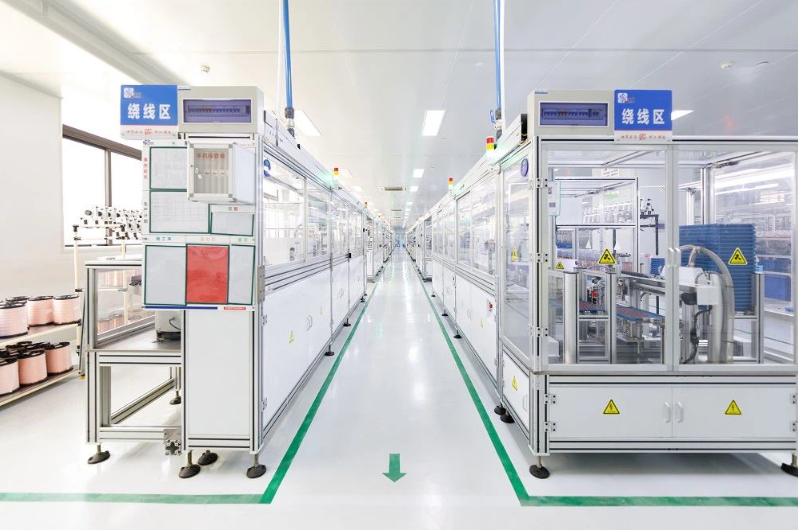

QIANJi Factory Introduction
QIANJI factory has modern fully automated production facilities and advanced product testing equipment. It has a high level of production and excellent product quality, making it a leader in the industry.
The manufacturing process of the factory is fully automated, ensuring maximum accuracy and efficiency. The factory is equipped with the most advanced machinery and production lines, which have been customized and designed to meet industry needs. This means that the factory produces the highest quality products.
Packing specification
Box size: 100 pieces
Size: 52cm * 43cm * 30cm*
Gross weight: 26kg
Net weight: 25kg
Packaging: Reinforced paper shell packaging is used to ensure safety during long-term transportation
Size: 52cm * 43cm * 30cm*
Gross weight: 26kg
Net weight: 25kg
Packaging: Reinforced paper shell packaging is used to ensure safety during long-term transportation
Our services
We also provide customers with more detailed product information for them to view on their own, and if they have any needs, they can click to obtain it. We can design according to your needs and provide you with a relay that satisfies you - consult us
Popular tags:high capacity relay,12v 80a relay,12v ac relay,12v 80 amp relay
