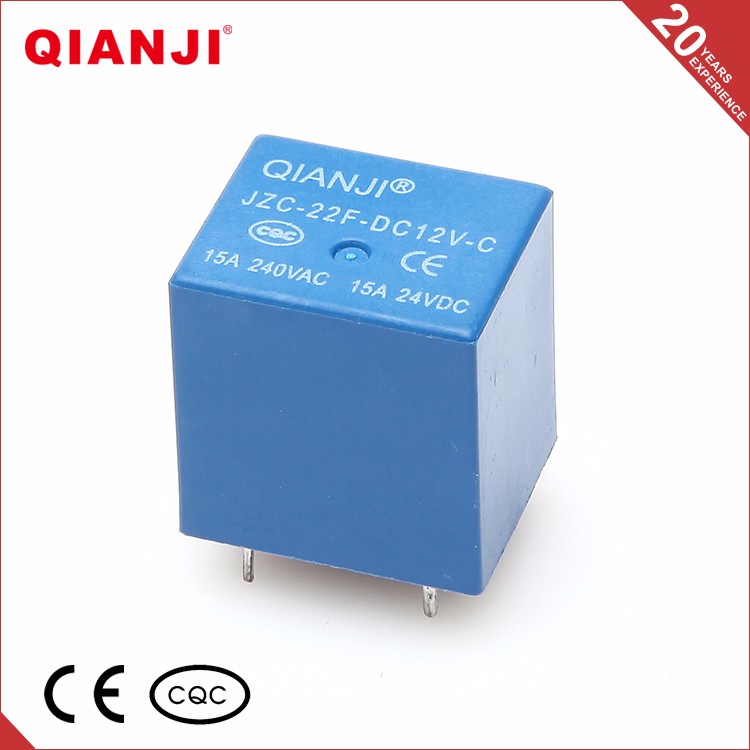

Small JZC 22F 12V 20V PCB relay 5-pin
- Usage:PCB
- Size:Subminiature
- Protect Feature:Sealed
- Contact Load:Low Power
- Model Number:JZC-22F
- Product Name:Small JZC 22F 12V 20V PCB relay 5-pin
- Contact Ratings:1H,1Z
- Contact Resistance:100mΩ (1A 6VDC)
- Contact Material:Silver Alloy
- Insulation Resistance:100MΩ 500VDC
- Operate Time:10ms/5ms
- Terminal Type:PCB
- Norminal Coil Power:0.36W,0.45W
- Product Certifications:CE
- Certifications:ISO9001
- Search Term：jzc 22f,20 amp relay 12v
- Search Term：12v 20a relay 5 pin,small relays

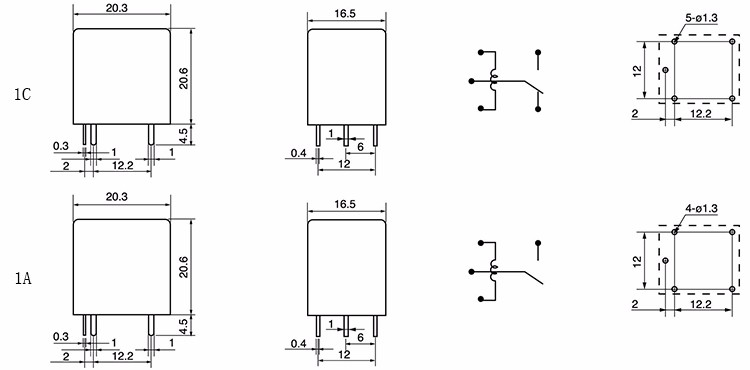

Product size, wiring diagram
The length of the relay is 2 centimeters, the width is 1.7 centimeters, and the height is also 2 centimeters. There are a total of 5 installation points, distributed in specific locations, to ensure that the relay can be securely and accurately installed on the corresponding equipment or circuit board.
Reference Data
package
Packaging properties of Small JZC 22F 12V 20V PCB relay 5-pin product
Carton size: 40cm * 24cm * 19cm
500 pieces in total
Gross weight: 10kg
Net weight: 9kg
We use high thickness cardboard boxes, which are protected by corrugated paper inside. The cardboard boxes have high strength and are suitable for long-distance export transportation.Contact us for more information
The advantages of our relays
This product has unparalleled advantages compared to similar PCB relays on the market
① Excellent overall scheme design significantly improves the characteristics and safety performance of PCB relays
The surface of this high-frequency signal PCB relay features arc welding, with a portion resembling long wire terminals, which enhances the reliability of long-term connections. The internal design adopts an L-shaped terminal block scheme, which not only ensures high-quality stability but also facilitates quick and easy inspection by workers for disassembly and maintenance;
② In addition to ensuring high frequency, the signal does not lose frames
The conversion frequency of this high-frequency signal PCB relay reaches 8GHz, exceeding the vast majority of high-frequency PCB relays currently on the market. Under the inevitable standard that the higher the frequency, the greater the signal harm, it can ensure stable insertion loss, high-quality signal transmission, and stable conversion of high-speed signals, with a speed of 9.8Gbps, fully ensuring that the signal does not lose frames and can create an excellent user experience;
③ The product conforms to the core values of green environmental protection, with minimal wear and tear. As a mobile game masterpiece of PCB relays, its wear and tear is only 100mW, far lower than the vast majority of similar products on the market currently. In the case where mechanical equipment must operate for a long time, this PCB relay can undoubtedly save a lot of energy consumption and is an excellent product for enterprise and home furniture applications.
This PCB relay can be sold in the market for wireless communication and precision machining high-speed detection equipment, and can adapt to a wide range of applications
