QIANJI purchases transparent 12V voltage relay 70.02
- Microscope Theory:Voltage Relay
- Usage:General Purpose
- Size:Miniature
- Protect Feature:Sealed
- Contact Load:High Power
- Place of Origin:CN;ZHE
- Brand Name:QIANJI
- Model Number:RXM2LB
- Product name:Electrical General Purpose Power Relay Price
- Contact Ratings:2Z,2H,2Z;4Z,4H,4D
- Contact Resistance:50mΩ(1A 6VDC)
- Contact Material:Silver Alloy
- Contact Capacity:10A/30VDC 250VAC;3A/30VDC 250VAC
- Insulation Resistance:500MΩ,500VDC
- Operate Time:25ms/15ms
- Terminal Type:PCB,Socket
- Nominal Coil Power:0.9W/1.2VA
- Product Certifications:CE
You are here:Home>>Relay>>General Purpose Relay

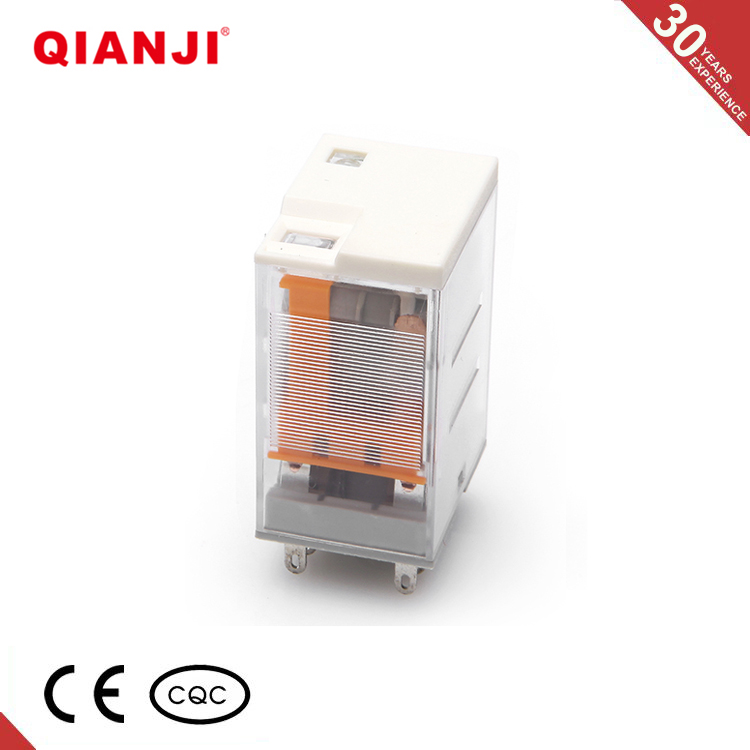

QIANJIMade in China Good Quality Electric General Purpose Power Relay RXM2LB
| Contact Ratings | ||||
| Contact Ratings | 2Z,2H,2D | 4Z,4H,4D | ||
| Contact Resistance | 50MΩ(1A 6VDC) | |||
| Contact Material | Silver Alloy | |||
| Contact Capacity | 10A/30VDC 250VAC | 3A/30VDC 250VAC | ||
| Specification | ||||
| Insulation Resistance | 500MΩ,500VDC | |||
| Dieletric Strength | BCC 1500V 1 min | |||
| BOC 1000V 1 min | ||||
| COC 1500V 1 min | ||||
| Operate Time | 25ms/25ms | |||
| Terminal Type | PCB,Socket | |||
| Coil Ratings | ||||
| Norminal Coil Power | 0.9W/1.2VA | |||
| Coil Versions | |||||||
Nominal Voltage VDC | Pull-in Voltage VDC | Release Voltage VDC | Coil Resistance Ω:±10% | Nominal Voltage VAC | Pull-in Voltage VAC | Release Voltage VAC | Coil Resistance Ω:±10% |
| 5 | 4.8 | 0.50 | 30 | 6 | 4.80 | 1.80 | 12 |
| 6 | 4.8 | 0.60 | 40 | 12 | 9.60 | 3.60 | 42 |
| 12 | 9.6 | 1.20 | 160 | 24 | 19.2 | 7.20 | 168 |
| 24 | 19.2 | 2.40 | 640 | 48 | 38.4 | 14.4 | 675 |
| 48 | 38.4 | 4.80 | 2560 | 110 | 96.0 | 36.0 | 3500 |
| 110 | 88.0 | 11.0 | 12100 | 220/240 | 176.0 | 66.0 | 14000/16500 |

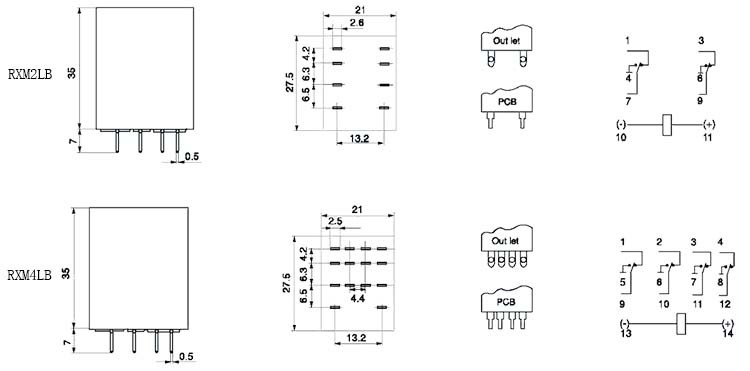

Dimension.Bottom View

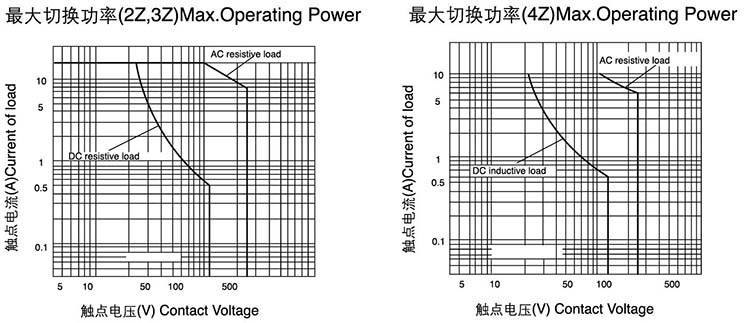

Reference Data
Packaging Details:Standard export packing
Delivery Detail:15-25 days
Yueqing Qianji Relay Co,.Ltd is a modern and professional enterprise reseaching,developing,
producing,and selling relays.
Over 20 years,it has always stuck to enterprise spirit pf basing on credit,factualism and innovation,
pursuing excellence,with the absolute advantage of product performance and quality,it becomes one of the great companies in the relay industry.
Company professionally produces more than 50series and more than 1000 specifications for Qianji production technology,testing equipment,scientific managment and effective,in order to provide a reliable production line.Further more,the company has obtained ISO9001 international quality system certification,the products have been approved the nontoxic and environmental protection test;some products have passed America UL certification,German TUV certification,CE certification,
CQC certification.We have the agents in Chian,and export the relays to Middle East,South America,
Southeast Asia,Taiwan,Korea,Australia,Europe and Amercia country;they are always popular with at home and aborad customers.
Face to the challenges of the technology and the market competition,we are insist on the strategy of"Technology Innovation,Quality-oriented,based on domestic market and world market development"Best quality and excellent serive.
Looking forward to cooperat with you sincerely, create a better tommorw together!
(1)Sales Team:We have a very professional sales team.Our Sourcing solutions will help you quickly find and buy the first-hand products that you need at the earliest time.
(2)Company Location:Near Shanghai and ningbo port,Convenience for shipping.
(3)Rapid response:Respond will be within 12 hours,Please feel free to contact us.
(4)Best Price:Factory direct sale,most competative price
Q:1.How do you control the products' quality?
A:Auto inspection machine and manual testing together before packing.
Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union
Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.
Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the express cost.
Q:5.What is your delivery time?
A:Usually it takes 15-25 working days for production.
Q:6.What is your warranty time of the products?
A:12-24 months
