T92 5 pin pcb relay 12v
T92
Delivery
FOB
minimum order
1 piece
Supply Ability
1000000piece / Month
Country of Origin
Ningbo/Shanghai
Quantity
Product brief
- Microscope Theory:Electromagnetic Relay
- Usage:PCB
- Size:Subminiature
- Protect Feature:Sealed
- Contact Load:High Power
- Model Number:JQX-16F(T92)

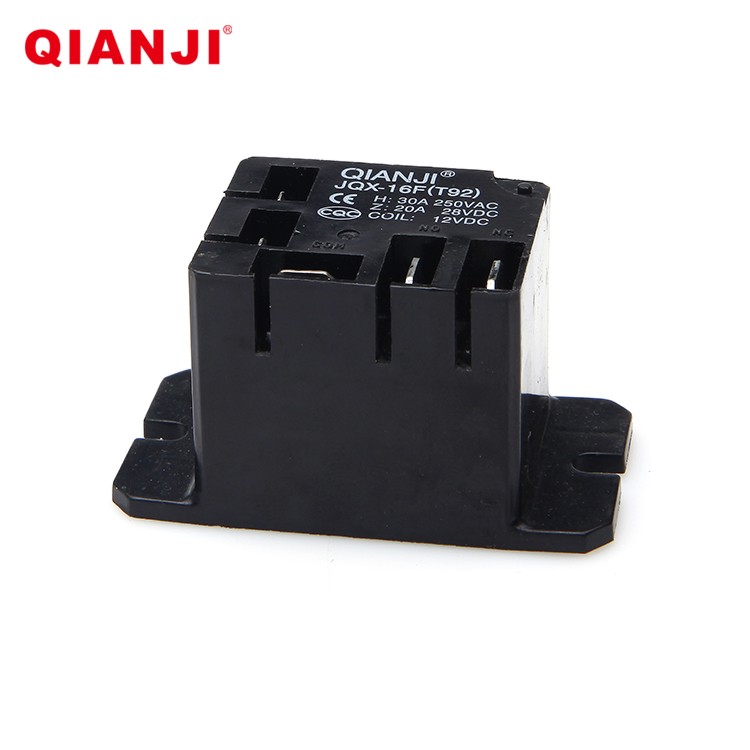

- Product name:T92 printed board low-power sealed Pcb relay
- Contact Ratings:1H,1D,Z(NC),1Z(NC)
- Contact Resistance:50mΩ ( 1A 24VDC)
- Contact Material:Silver Alloy
- Insulation Resistance:100MΩ 500VDC
- Operate Time:15ms/10ms
- Terminal Type:Printing plates and quick-connected terminals
- Norminal Coil Power:DC:0.9W
- Product Certifications:CE
- Certifications:ISO9001
- keyword：t92,pcb relay 12v,relay for pcb,5 pin pcb relay
Diverse voltage options
The T92 relay has multiple styles of voltage options, including 5V, 6V, 9V, 12V, and up to 60V. You can choose relays with different voltages based on the specific usage environment. Capable of adapting to different circuit designs and working environments. Whether your device has low or high voltage requirements, PCB relay 12v can provide you with suitable solutions
Solution
In practical cases, in some small electronic devices, the required voltage is relatively small, and at this time, the 5V T92 relay can operate stably to ensure the normal function of the equipment; In some industrial control systems, the 12V T92 relay can better cope with complex working conditions.
The T92 relay operates at a power of 0.9W, which is relatively low compared to other relays in the same industry. This means that it can efficiently complete relay switching tasks while consuming low energy, saving energy and improving overall efficiency for your circuit.
Material selection
When processing T92, we consider the issue of lifespan. Generally, manufacturers use copper contacts to save costs, but QIANJI improves quality and gains customer trust by using silver alloy contacts. This material has good conductivity and wear resistance, which can maintain stable contact performance during long-term operation, reduce contact resistance, and extend the service life of relays.
The printed circuit board casing not only provides good protection for internal components, but also facilitates installation and integration on the circuit board, making the entire circuit layout more compact and aesthetically pleasing.
Customizable services
QIANJI can provide OEM or ODM services for every customer with needs, which can truly solve the needs of users. For example, if you are not satisfied with the voltage of our relay and want to choose a higher voltage, we can provide you with a separate design voltage to meet your needs. We not only design the voltage, current and other parameters of the relay, but also customize its function and appearance. For example, customizing your company's logo on the casing of a relay.. Whether in the fields of consumer electronics, industrial automation, communication equipment, or automotive electronics, relay for PCB relays can provide reliable control and switching guarantees for your circuit system with their excellent performance and flexible characteristics. Choosing a T92 5-pin PCB relay means choosing high quality, high performance, and high reliability.
If you need the T92 relay, please contact us and we will provide you with more information about the T92 relay. Alternatively, if you have any other relay requirements, please contact us and we will provide you with a relay solution———— click
HOT：pcb relay 12v，relay for pcb，5 pin pcb relay
