High Quality PCB Relay - T73 Mini Sugar Voltage Relay Control
The products in the PCB control relay series of Zhejiang QIANJI Relay Co., Ltd.
use silver alloy as the contact material and are equipped with efficient and safe main control chips.
The quality surpasses that of international first tier brands, and the control ability advantage is obvious,
helping your products upgrade and become more internationalized!
The coil voltage can be adjusted to 3,5,6,9,12,24,48VDC. Adapted to more environments and with 12V contact switching ability,
ensuring circuit safety. The rated coil power is 0.36W and 0.45W.
We not only provide excellent PCB relay products, but also expert level technical support!!

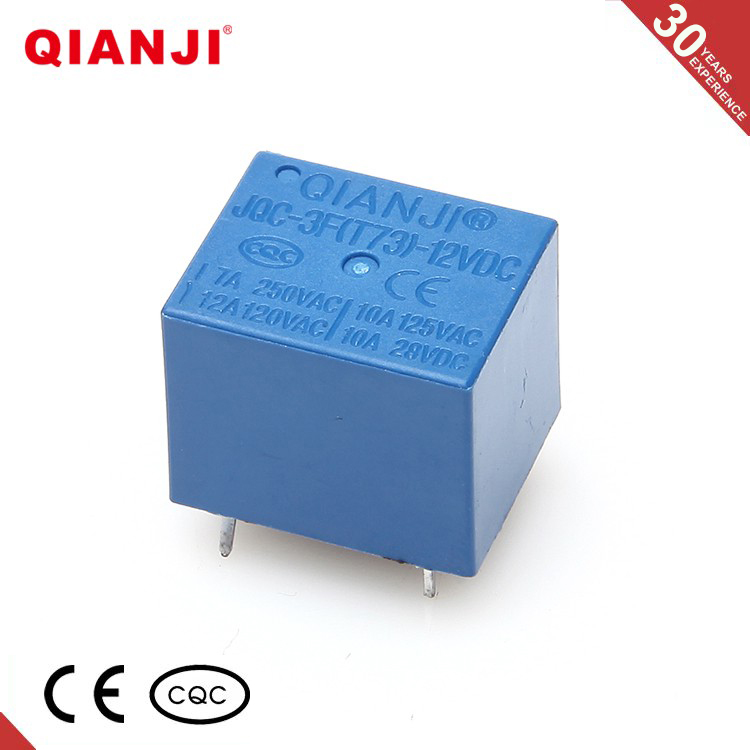

Product real-life photos

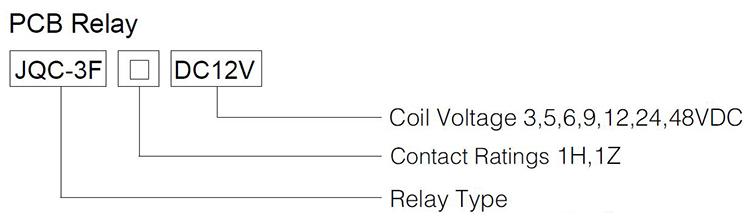

Product specification sheet;
|
Contact Ratings |
|
|
Contact Ratings |
1H,1Z |
|
Contact Resistance |
100MΩ(at 1A 6VDC) |
|
Contact Material |
Silver Alloy |
|
Contact Capacity |
10A 250VAC/7A 250VDC |
|
Specification |
|
|
Insulation Resistance |
100MΩ.500VDC |
|
Dieletric Strength |
BCC 1500V 1 min |
|
BOC 750V 1 min |
|
|
Operate Time |
10ms/5ms |
|
Terminal Type |
PCB |
|
Coil Ratings |
|
|
Norminal Coil Power |
0.36W,0.45W |

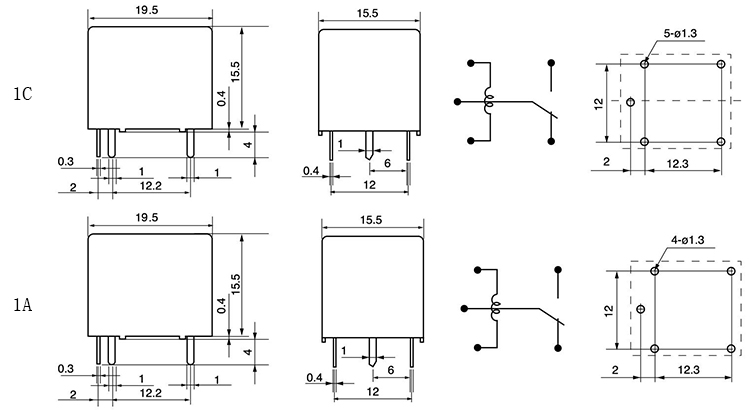

Coil specifications and wiring diagram
|
Coil Versions |
|||||
|
Nominal Voltage VDC |
Coil Resistance at 20℃ ±10%( Ω) |
Max Operate Voltage (VDC) |
Min Release Voltage (VDC) |
Max Applicable Voltage (VDC) |
|
|
0.36W |
0.45W |
||||
|
3 |
25 |
20 |
2.25 |
0.3 |
3.9 |
|
5 |
70 |
55 |
3.75 |
0.5 |
6.5 |
|
6 |
100 |
80 |
4.50 |
0.6 |
7.8 |
|
9 |
220 |
180 |
6.75 |
0.9 |
11.7 |
|
12 |
400 |
320 |
9.00 |
1.2 |
15.6 |
|
24 |
1600 |
1280 |
18.00 |
2.4 |
31.2 |
|
48 |
6400 |
5100 |
36.00 |
4.8 |
62.4 |
